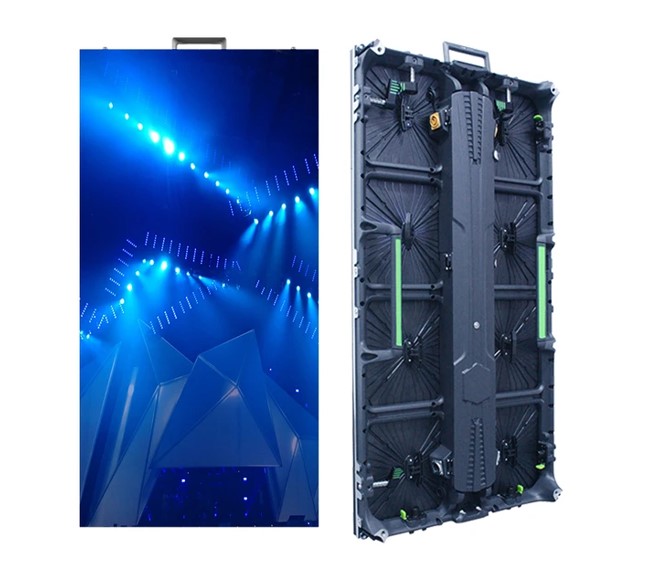

PL-P2.97 Outdoor – Sistemas Led

PL-P2.97 Outdoor

General Outdoor Fixed LED

Características

Especificación Técnica

Modelo

PL-P2.97 Outdoor

Parameters

Pixel Pitch

3.91mm

Pixel Configuration

1R1G1B

LED Type

SMD2121

Brightness (Max)

1500 nit

Color Temperature

3500K-9000K（adjustable)

Viewing Angle

H160° / V140°

Pixel Density

65,536 dots/m²

Module Size

250mm×250mm

Module Resolution

64x64 dots

Cabinet Size

W500mm×H1000mm×D61.3mm

Cabinet Resolution (W×H)

128×256 dots

Cabinet Weight

11.45 kg ± 0.5

Cabinet Material

Aluminum

Información General

Operating Temperature/ Humidity

-10℃~+40℃/10~80%RH

Storage Temperature/ Humidity

-20℃~+60℃/10~80%RH

IP Rating

Front IP20/Rear IP20

PowAspect Ratio

1:2

Gray Scale

14 bit

Contrast Ratio

5000:1

Refresh Rate

3840Hz

Input Voltage

AC 110~220V (+/-10%)

Input Power (max)

420 W/m2

Input Power (Avg)

130 W/m2

Installation

Wall Mounted/Floor Mounted/Hanging

Maintenance

Front/Rear Maintenance

Signal Transmission Distance

CAT5 Cable ( L≤100m ), multi-mode fiber ( L≤300m ), single mode fiber (L≤10km)
